SICK AFM60A-S4NB018x12 SICK Instruments AFS AFM60 Ethernet Absolute Encoders

SICK AFM60A-S4NB018x12 | AFS/AFM60 Ethernet,ABSOLUTE ENCODERS

Features

Connection type Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial 1) 2)

Supply voltage 10 ... 30 V

Power consumption ≤ 3 W (without load)

Reverse polarity protection ✔

MTTFd: mean time to dangerous failure 80 years (EN ISO 13849-1) 3)

1) A-coded.

2) D-coded.

3) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no.

8015532.

Mechanical data

Mechanical design Solid shaft, face mount flange

Shaft diameter 10 mm

Shaft length 19 mm

Weight 0.2 kg

Shaft material Stainless steel

Flange material Aluminum

Housing material Aluminum

Start up torque 0.5 Ncm (+20 °C)

Operating torque 0.3 Ncm (+20 °C)

Permissible shaft loading 80 N (radial)

40 N (axial)

Operating speed ≤ 9,000 min⁻¹ 1)

Moment of inertia of the rotor 6.2 gcm²

Bearing lifetime 3 x 10^9 revolutions

Angular acceleration ≤ 500,000 rad/s²

1) Allow for self-heating of 3.3 K per 1,000 rpm when designing the operating temperature range.

AFS SICK Instruments

AFM60 SICK Instruments

sick afm60a s4ib018x12sick afm60a s4ib018x12

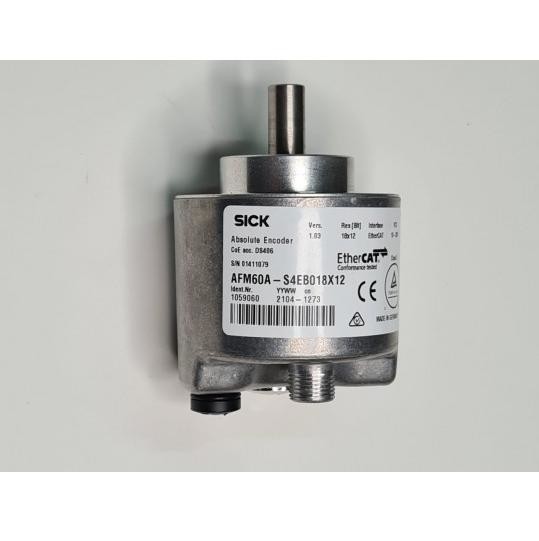

SICK AFM60A-S4NB018x12 SICK Instruments AFS AFM60 Ethernet Absolute Encoders Images
